PBAT Compostable Machine Pallet Wrap — High-Speed Biodegradable Stretch Film | ES-SW-02

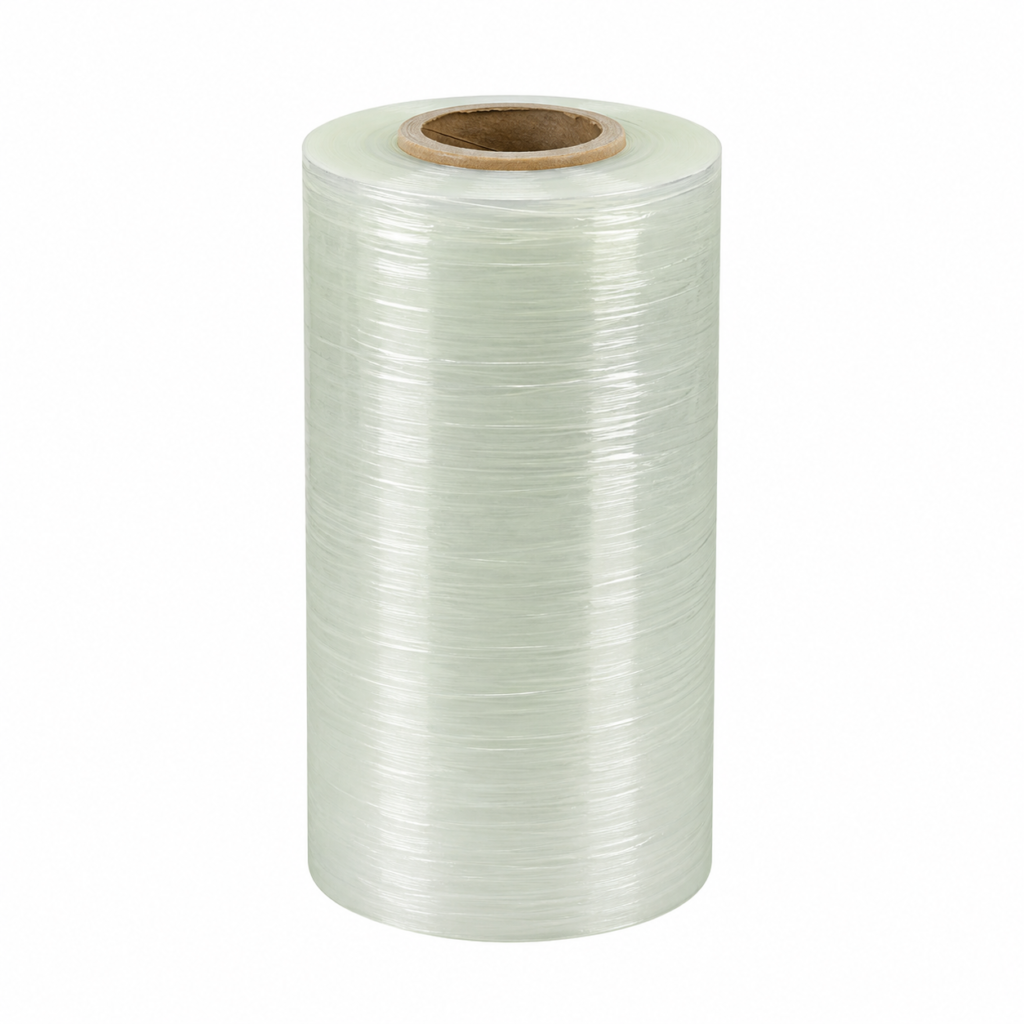

PBAT Compostable Pallet Wrap
PBAT Compostable Machine Pallet Wrap — High-Speed Biodegradable Stretch Film | ES-SW-02
Certification names shown here are a starting reference. Request the current certificate and confirm that its scope covers the selected formulation, printing and finished pack.
| Material | PBAT (100% polybutylene adipate terephthalate) |
| Thickness | 15–20 microns |
| Dimensions | 500mm × 500m (standard); 350–750mm × 500–1500m custom |
| MOQ | 60 cartons (approx. 1 ton) |
| Lead Time | 15–25 days |
Free samples shipped within 3 business days via DHL/FedEx. Custom-printed samples: 7–10 days. · 12-month shelf-life. Free replacement of any stock showing premature degradation or defects when stored at 15–30°C, <60% RH, away from direct sunlight.
PRODUCT OVERVIEW
Buyer brief for ES-SW-02
PBAT Compostable Machine Pallet Wrap — High-Speed Biodegradable Stretch Film | ES-SW-02
PRODUCT / MODEL
ES-SW-02
Stretch Wrap
FORMAT
500mm × 500m (standard); 350–750mm × 500–1500m custom
GAUGE
15–20 microns
LOAD / CAPACITY
500 meters per roll
PACKING
4 rolls per carton
SPECIFICATION LOGIC
Four decisions before quotation
Construction to approve
Material: PBAT (100% polybutylene adipate terephthalate). Format: 500mm × 500m (standard); 350–750mm × 500–1500m custom. Gauge: 15–20 microns.
Performance to validate
Target: 500 meters per roll. Validation: Free samples shipped within 3 business days via DHL/FedEx. Custom-printed samples: 7–10 days..
Evidence and order path
Evidence starting point: EN 13432, OK Compost INDUSTRIAL, TÜV. MOQ: 60 cartons (approx. 1 ton). Timing: 15–25 days.
FASTER RFQ
Prepare these four inputs
Complete inputs reduce back-and-forth and help us match the sample, evidence and commercial quote to one defined construction.
- Destination market, end use and intended disposal route
- Required dimensions, construction, gauge and performance target
- Contents, equipment or packing-line conditions to validate
- Artwork, annual volume, packing format and delivery destination
WHY CHOOSE THIS PRODUCT
Key Features

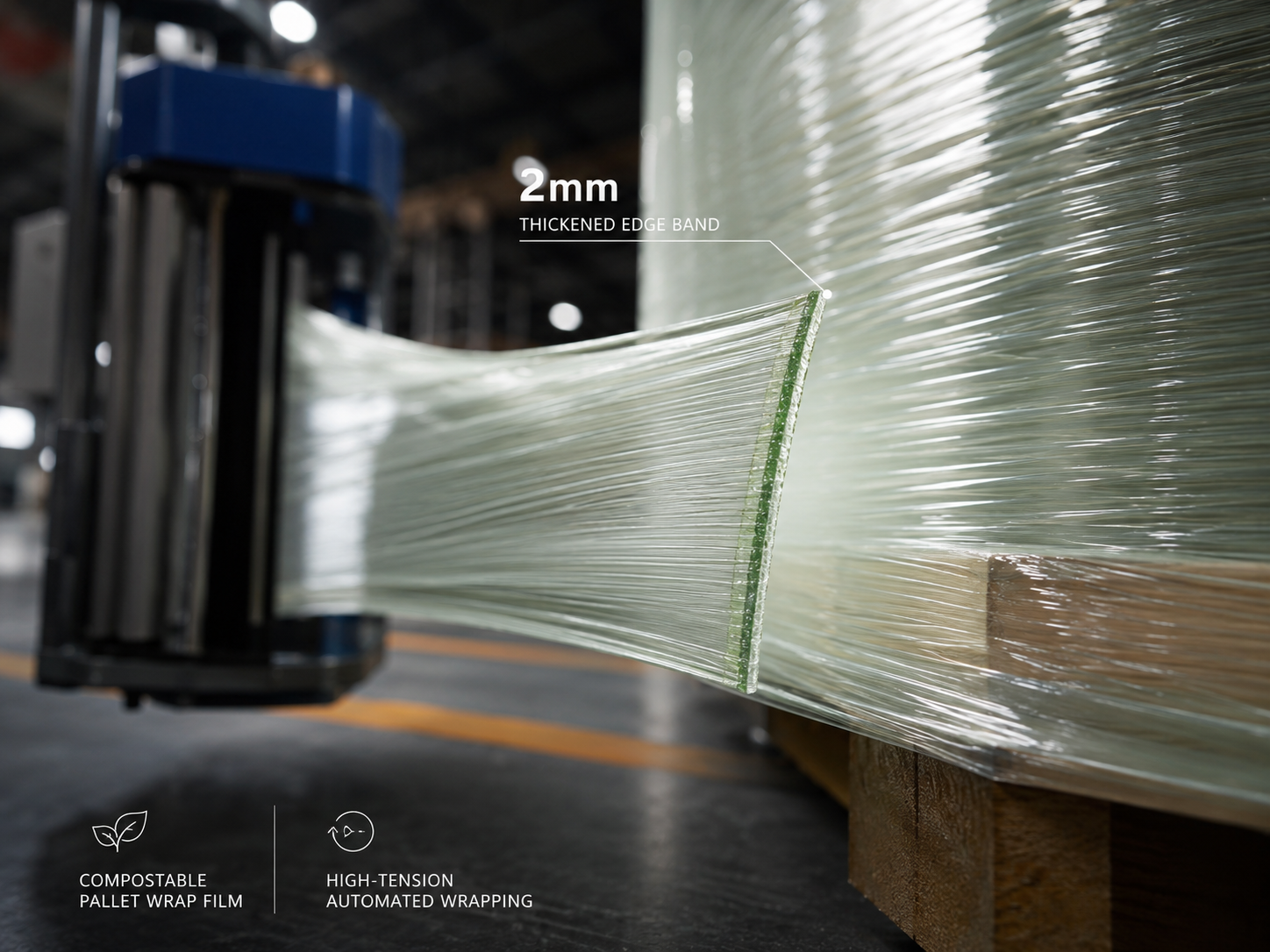

100% PBAT machine film at 15–20 microns

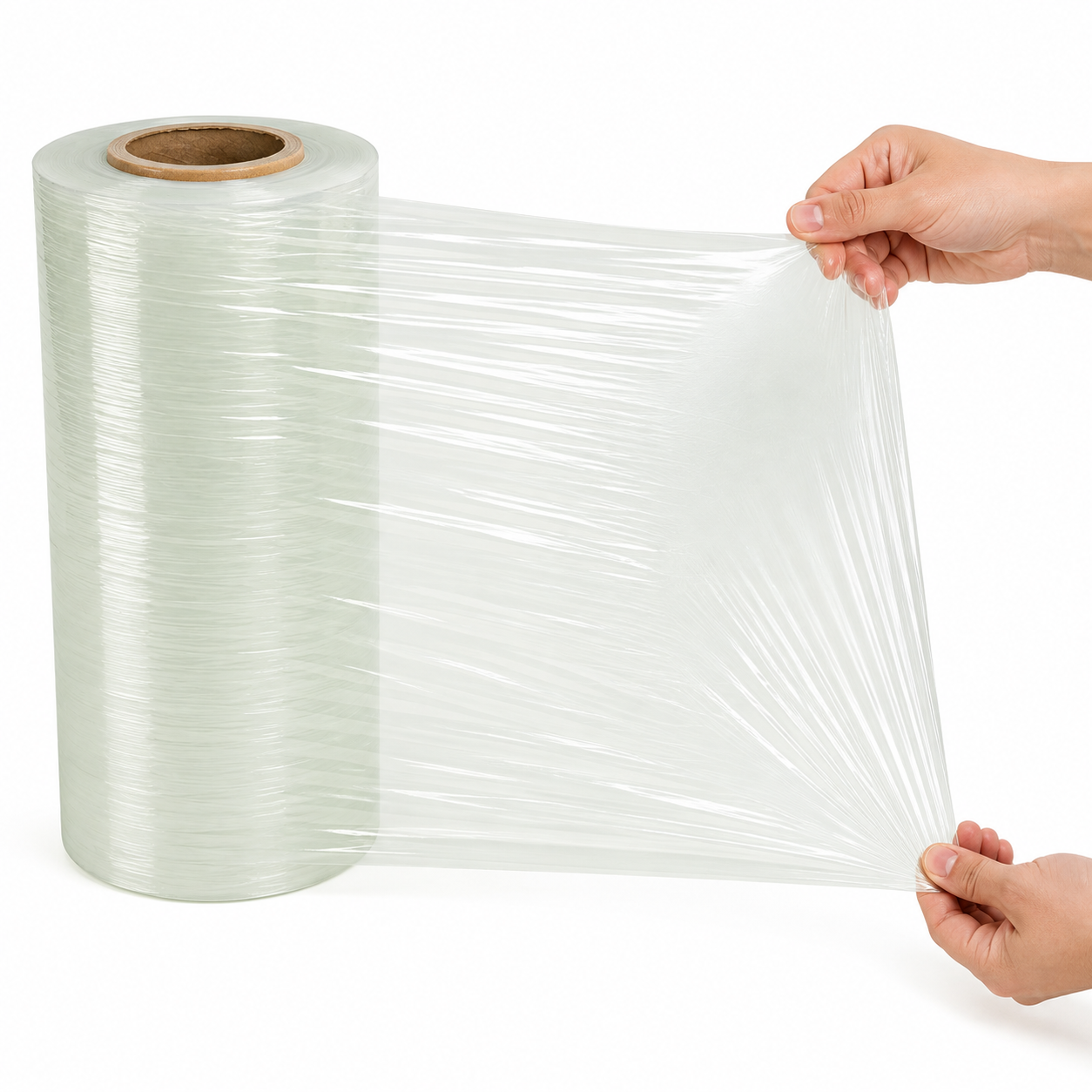

250% pre-stretch at line speeds up to 40 rpm
Dart drop impact exceeding 120 g at 20 μm
30% higher puncture resistance than LLDPE

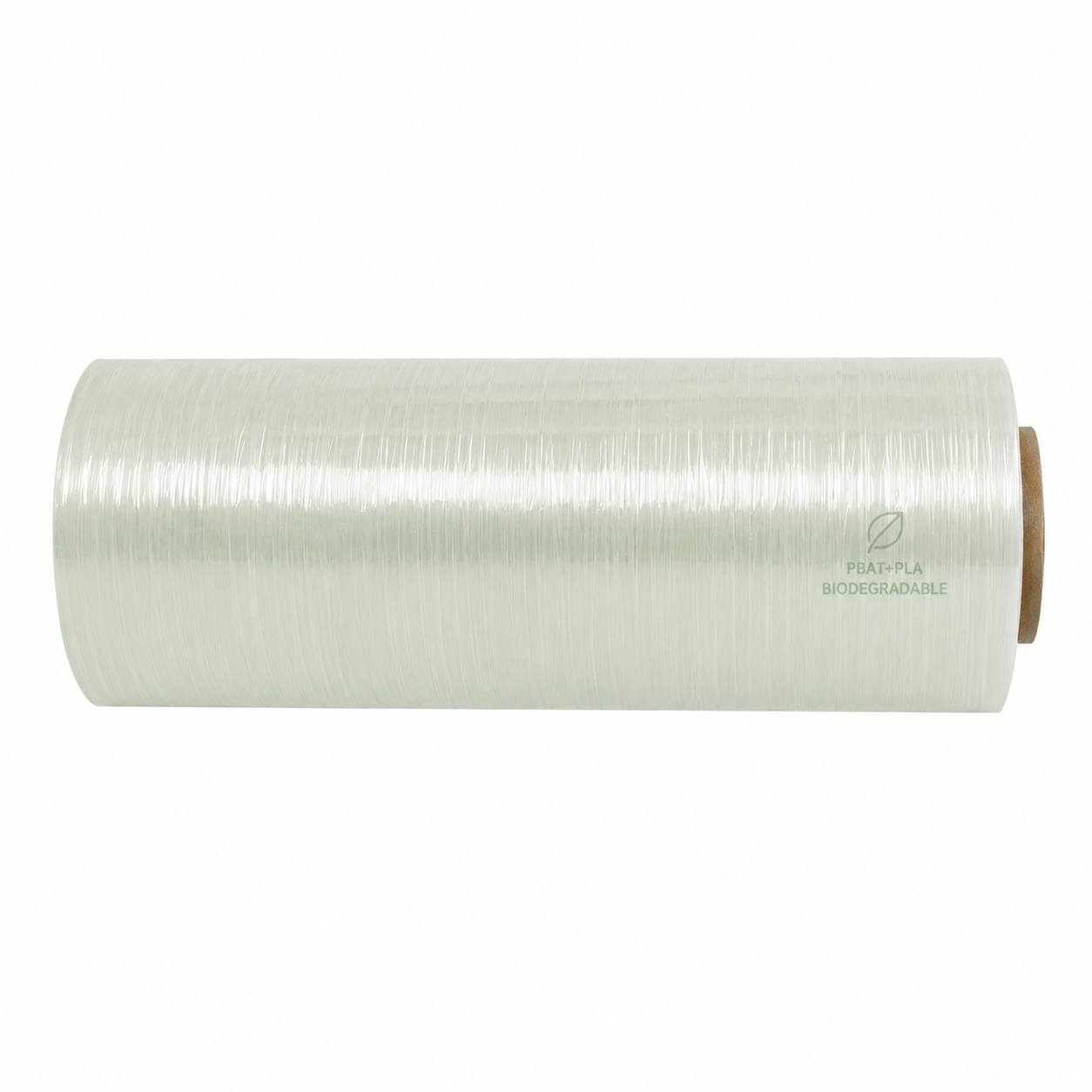

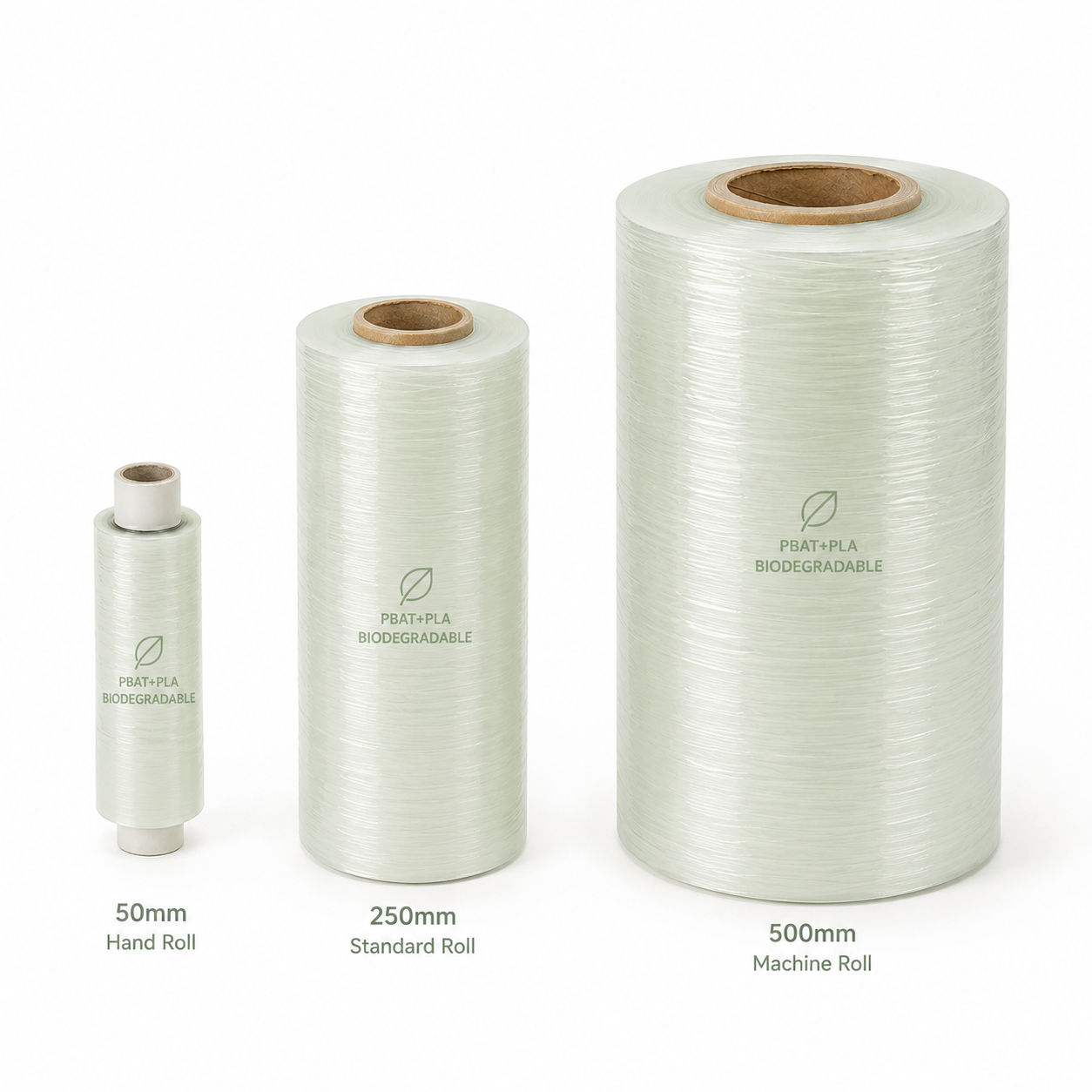

500 mm × 500 m rolls
built for automated wrappers processing 500+ pallets per day
Validated on Lantech, Wulftec and Robopac wrappers
machine setup guide included with every trial
EN 13432 and OK Compost INDUSTRIAL certificates
end-of-life documentation supplied with every batch
Fewer rewraps on sharp-edged loads
elastic energy absorption reduces film waste per pallet
TECHNICAL SPECIFICATIONS
Specifications
| Material | PBAT (100% polybutylene adipate terephthalate) |
| Thickness | 15–20 microns |
| Dimensions | 500mm × 500m (standard); 350–750mm × 500–1500m custom |
| Color | Natural / Transparent / Black / Custom |
| Capacity | 500 meters per roll |
| Pack Count | 4 rolls per carton |
| MOQ | 60 cartons (approx. 1 ton) |
| Lead Time | 15–25 days |
| Carton Dimensions | 54 × 28 × 28 cm |
| Certifications | EN 13432, OK Compost INDUSTRIAL, TÜV |
CERTIFICATIONS
Certifications explained

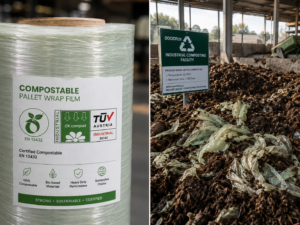

EN 13432 — EU Compostability Standard
The harmonised European standard: 90%+ biodegradation within 6 months, plus disintegration and ecotoxicity limits.
OK Compost INDUSTRIAL — TÜV Austria
Industrial-compostability mark: verified to biodegrade at 58°C+ in managed facilities within 90–180 days. 100% PBAT degrades uniformly without polymer blend separation.
OEM / ODM
Customization Options
Custom width from 350mm to 750mm. Custom roll length from 500m to 1,500m. Core diameters: 50mm, 76mm, 100mm. Custom gauge from 12–30μm. Custom color and edge printing. MOQ 500 kg for custom.
FACTORY CAPABILITIES
Esinle OEM Capabilities
The selected format can be reviewed against these Guangzhou manufacturing capabilities. Final feasibility, tolerances and MOQ are confirmed in the approved specification.
Custom Dimensions
Width, gusset depth and length can be reviewed against your packaging-line requirements and converting limits.
Printing & Branding
Flexographic artwork, colour count, print coverage and plate requirements are checked before MOQ and pricing are confirmed.
In-House Compounding
PLA, PBAT and starch blend options are selected around flexibility, strength, processing and the documented claim required for the SKU.
BEHIND EVERY PRODUCT
Integrated production in Guangzhou
The workflow covers compounding, film blowing, printing and bag conversion, with the order specification used as the reference for in-process and final checks.
USE CASES
Applications

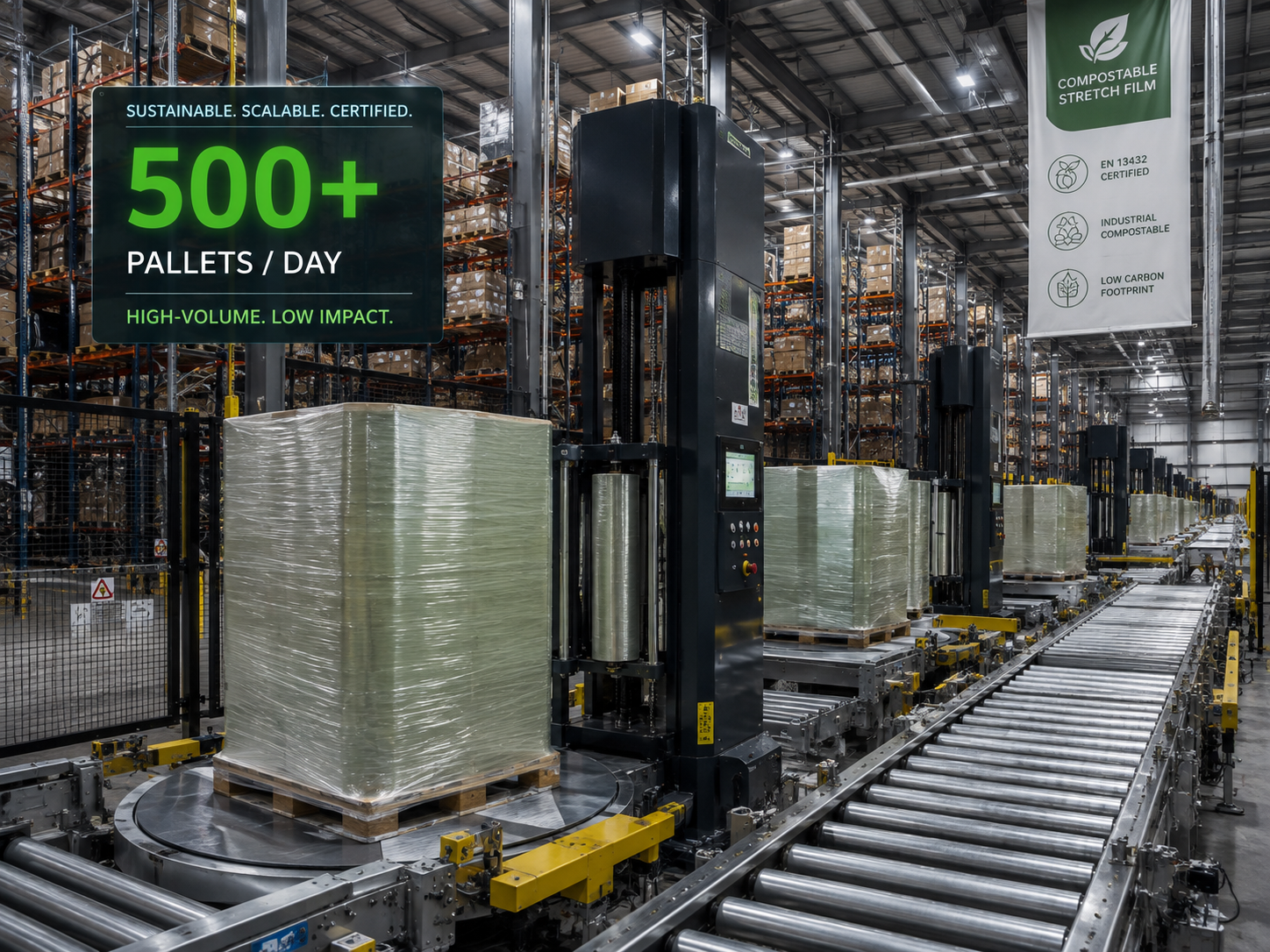

High-Volume Distribution Centers
Automated stretch wrapping lines processing 500+ pallets per day — sustainable film at production speed without throughput compromise
Third-Party Logistics (3PL) Providers
Differentiate 3PL services with certified-compostable pallet wrap — a sustainability value-add for logistics clients

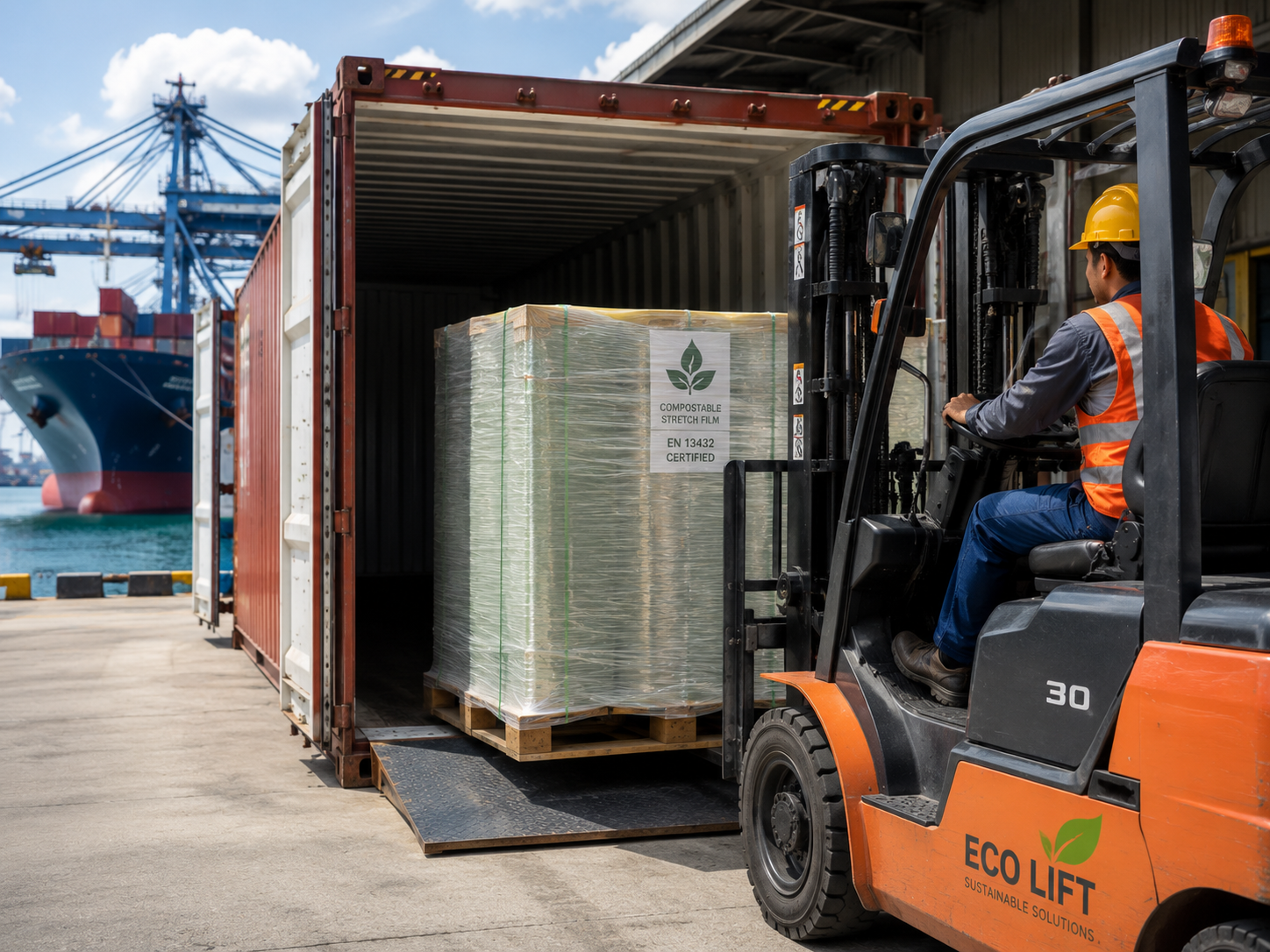

Export & Container Loading
Pallet stabilization for ocean freight and containerized shipping — compostable film that survives the international supply chain
HONEST TRANSPARENCY
Limitations & Storage
Machine application only — the pre-stretch requirement (200%+) means manual application will not achieve proper load containment. Verify machine pre-stretch carriage is set to 200–250% before first use — settings optimized for LLDPE (typically 150–200%) may need adjustment. Not recommended for pallets over 1,500 kg or loads with extremely sharp metal projections. Industrial compostable only.
FAQ
Frequently asked questions
Can this film run on my existing stretch wrapper?
Our PBAT machine film has been tested and validated on Lantech Q-300 and S-350, Wulftec WCA-200, and Robopac Rotoplat series machines. Key parameters for your technical team: recommended pre-stretch 200–250%, wrap force 8–12 kg, turntable speed 12–15 rpm. We provide a machine setup guide with every trial order and offer remote technical support for initial setup.
How does PBAT compare to LLDPE in cost and performance?
PBAT machine film is approximately 25–30% more expensive per roll than LLDPE at current resin pricing. However, the premium is offset by: 30% higher puncture resistance (fewer rewraps due to tears), regulatory compliance advantages in markets restricting plastic packaging, and the marketing/differentiation value for logistics providers. As PBAT production scales (BASF ecoflex capacity expansion and new Asian capacity), we expect the price gap to narrow to 10–15% within 3 years.
What end-of-life documentation do you provide?
EN 13432 and OK Compost INDUSTRIAL certificates from TUV Austria. SGS biodegradation test report. Certificate of Analysis with every batch. We also provide a one-page end-of-life instruction sheet for your warehouse staff and a customer-facing sustainability summary for your own clients.
